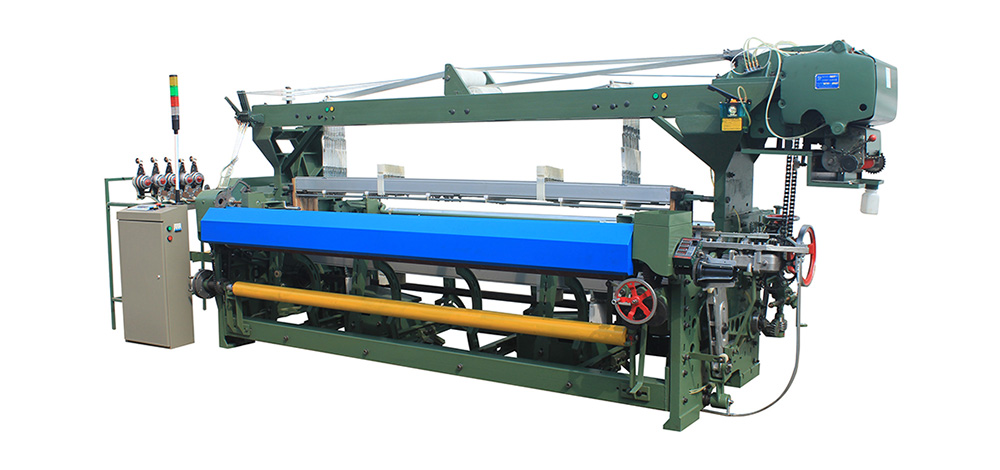

GA738 Rapier loom

性能特點：

1. Based on GA787, this machine used more heavier frame to make it more suitable for weaving thick fabric.
2. Crank shaft type beating, 4 connecting rods weft insertion, shedding by dobby, best cost performance ratio.
3. Adopts continuous take up device, to make better fabric quality.
main technical datas

Main Datas
Reed width
150-700cm
Max Speed
440m/min
Yarn range
Cotton 7Ne-60Ne Wool 12Nm-100Nm Chemical fiber900D-60D
Shedding
Upper mechanical or electronic dobby, 20 or 24 levers
heald frame
Max 16pcs
color selector
4-6 colors selector
Dia. Rolling up
φ400mm
Dia of beam flange
φ600mm or φ680mm
warp stop
Six-line electrical warp stop
weft stop
Piezoelectric ceramic
motor power
1.5kw
weight
2200-3500kg
overall size
4000mm×1800mm×1700mm（230cm）
